Carbide morphology and cold formability
Spheroidizing annealing is used for medium-carbon, high-carbon, boron and alloy steels when substantial cold deformation is required. Controlled heating, holding and cooling change the shape and distribution of carbides to reduce deformation resistance and improve structural uniformity. The treatment must be selected for the steel grade, starting microstructure, equipment capability and order requirements.

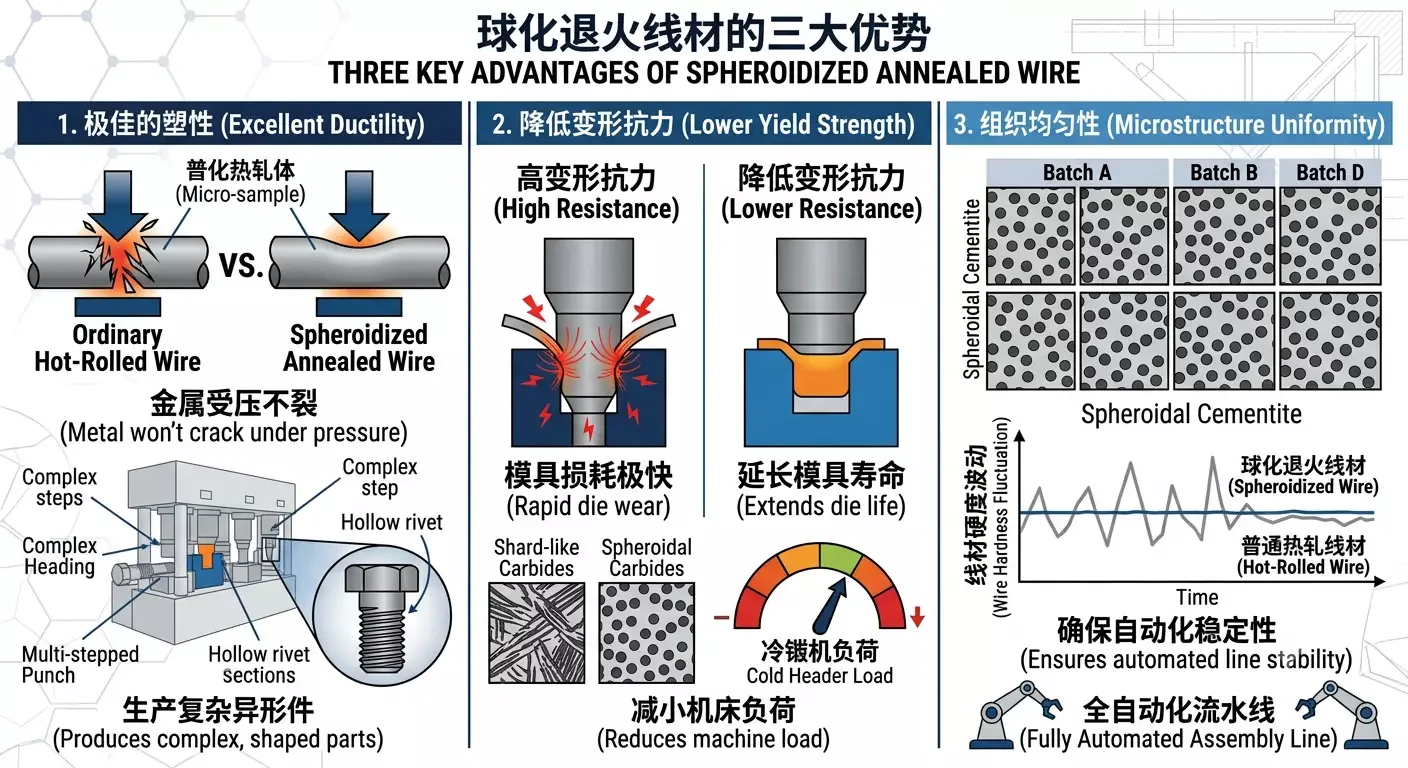

How can a spheroidized structure help cold heading?
- It can reduce deformation resistance and equipment load.
- It can improve resistance to cracking during multistage forming of complex parts.
- Reducing hardness and microstructure variation can support production stability.
- Hardness, microstructure, decarburization and forming tests are still required. Annealing alone does not guarantee crack-free parts.

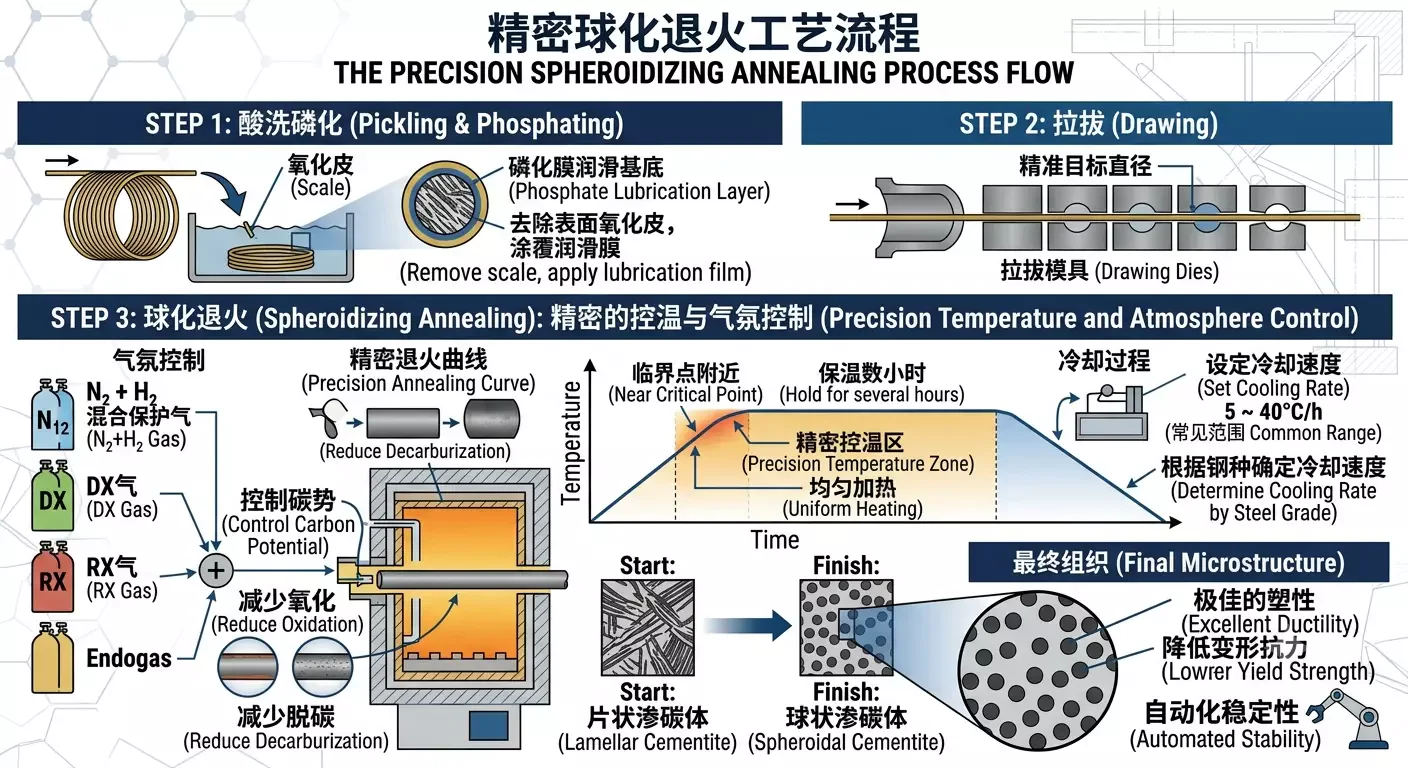

From wire rod to dispatch: an illustrative process sequence
This is not a fixed route for every material. Operation order, the number of annealing stages and final drawing depend on steel grade, target dimensions, total deformation, delivery condition and the customer agreement.
Wire rod (R)
Pickling
Spheroidizing annealing (SA)
Pickling and phosphating (PC)
Spheroidizing annealing (SA)
Drawing (D)
Pickling and phosphating (PC)
Drawing (D)
Inspection
Packaging
Dispatch
View equipment and operation videos for each production stage
What needs to be controlled during annealing?
The protective atmosphere, furnace temperature uniformity, heating relative to critical temperatures, holding time and cooling path jointly influence the final microstructure. A single temperature or cooling rate is not specified here for all steels. Parameters require validation for the grade, furnace and technical conditions of the order.
Process code explanations
Abbreviations can differ between customers and manufacturers. Technical agreements should specify the full sequence rather than rely on codes alone.
- PC — pickling and phosphating
- Remove scale and prepare a coating that supports lubrication during subsequent drawing.
- LA — low-temperature annealing
- A heat-treatment step selected for the material condition.
- RA — annealing
- An annealing step to soften the material or adjust its microstructure.
- SA — spheroidizing annealing
- Promote a more spheroidal carbide morphology to improve cold formability.
- D — drawing
- Reduce the cross-section through a die and control dimensions.
- HD — drawing without intermediate annealing
- Direct drawing with no intermediate annealing stage.
- AIP — intermediate process annealing
- An annealing stage within the manufacturing sequence.
Reading illustrative process routes
- Annealing: PC → RA
- Spheroidizing annealing: PC → SA
- Drawing after annealing: PC → RA/SA → PC → D
- Drawing before spheroidizing annealing: PC → D → SA → PC
- Final drawing: PC → D → SA → PC → D
- With low-temperature annealing: PC → LA → PC → D → SA → PC; followed by D if required
- Repeated spheroidizing and drawing: PC → SA → PC → D → SA → PC → D

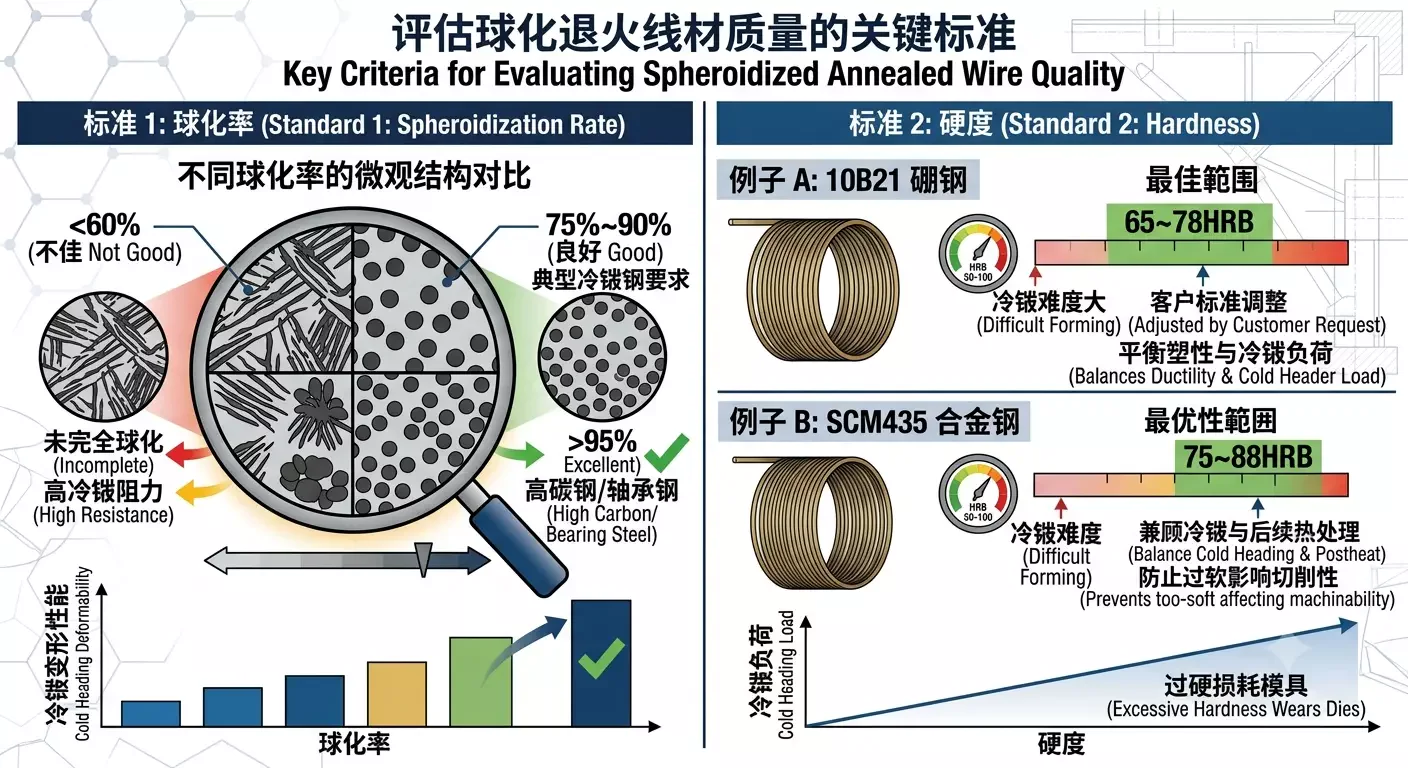

Annealing alone does not establish delivery quality
Delivery verification should consider spheroidized microstructure, hardness, decarburization, mechanical properties, surface condition, dimensions and cold-upsetting or actual forming tests. Acceptance criteria come from the applicable standard, customer drawing and order agreement. Universal numerical thresholds are not used here.
