QUALITY ASSURANCE · IATF 16949

Packaging and Delivery Quality of Cold Heading Wire

Creation Group packaging examples: coil strapping, finished-product labels, winding direction, protective wrapping, wooden bases, wooden cases and container loading.

PACKAGING

Packaging examples and product protection

The images below show coil strapping, labels, winding direction, outer packaging and protection during loading.

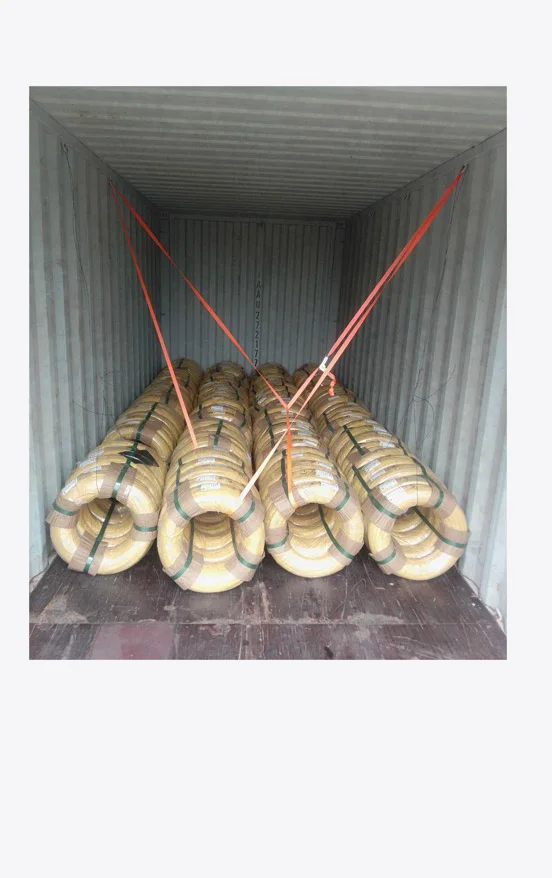

Examples of pallets, coil wrapping, wire stands and sample shipments. Click a photo to enlarge it. Packaging materials, coil weight, strapping, labels and load securing are confirmed according to the order and transport requirements.

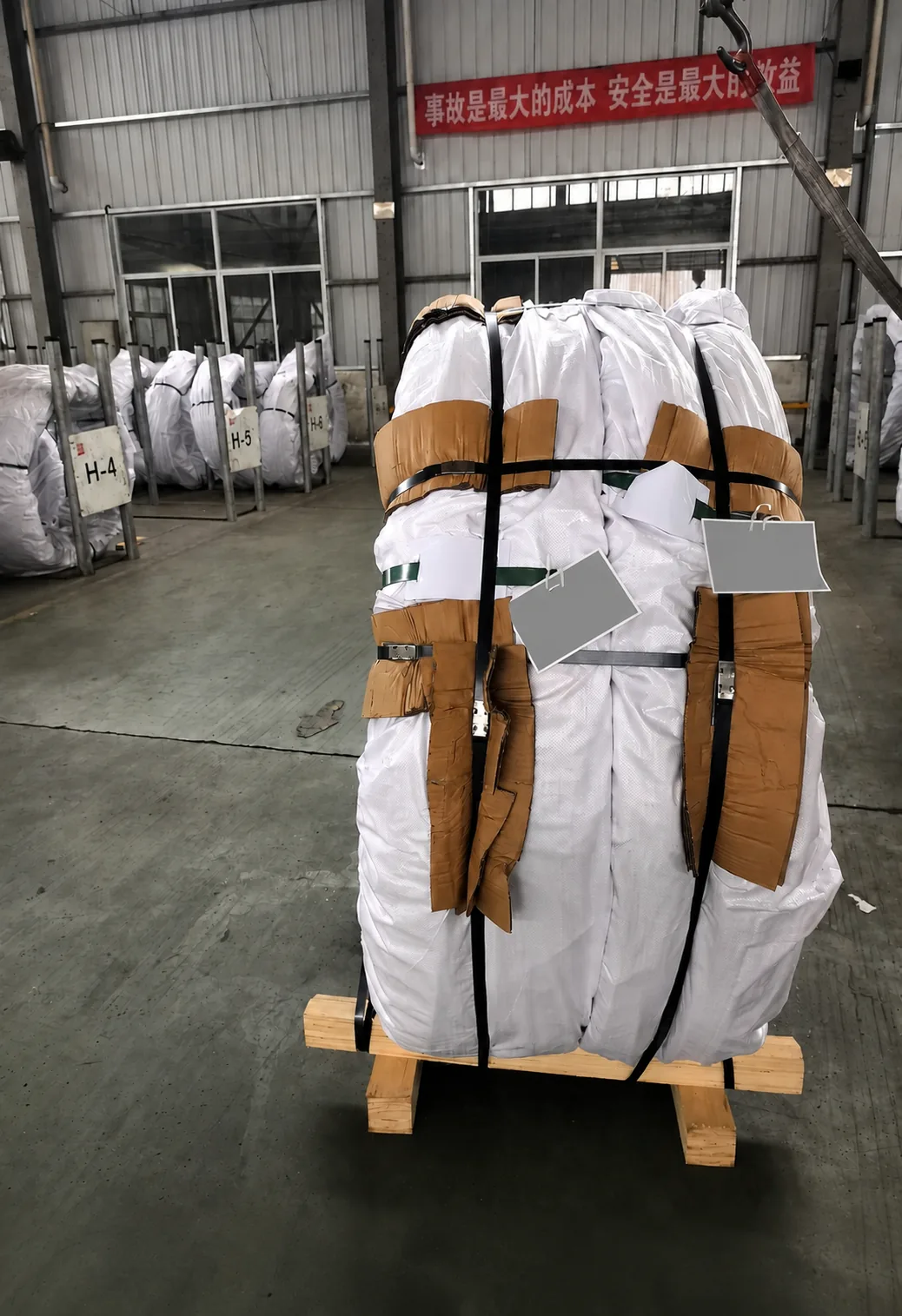

Pallet packaging
Wrapped coils are placed on pallets for handling and stacking.

Pallet packaging and shipment
Coils supported on pallets during shipment preparation.

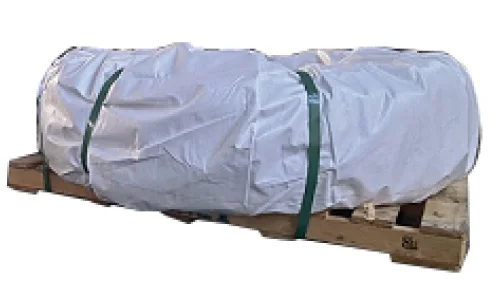

Sample shipment packaging
Wrapped samples on a wooden pallet; packaging is confirmed to suit the samples.

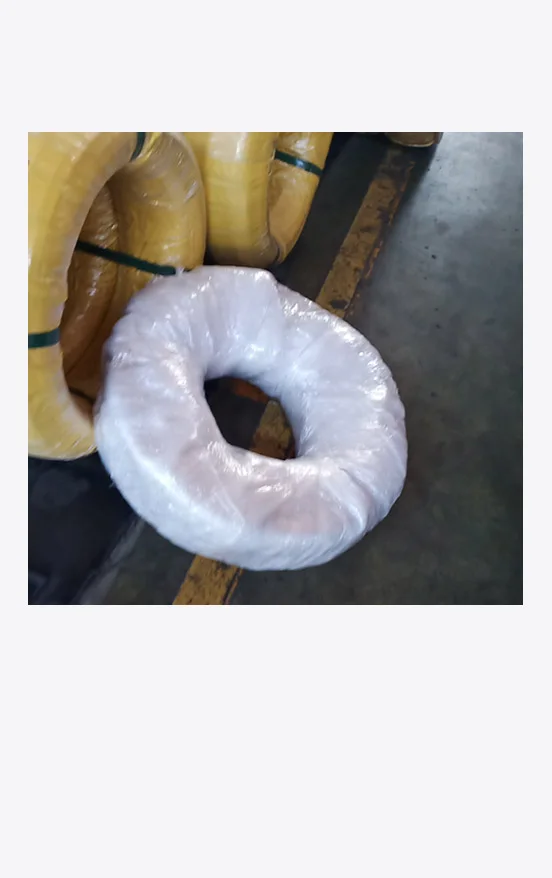

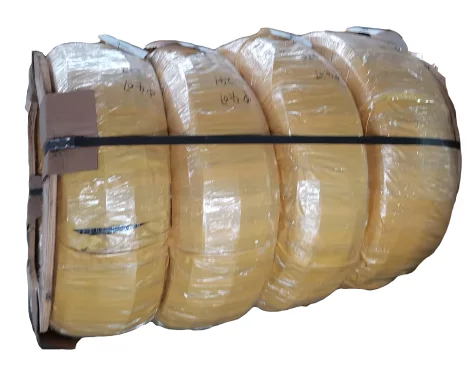

Clear-film wrapping and strapping
Coils wrapped in clear film, with straps and bottom support.

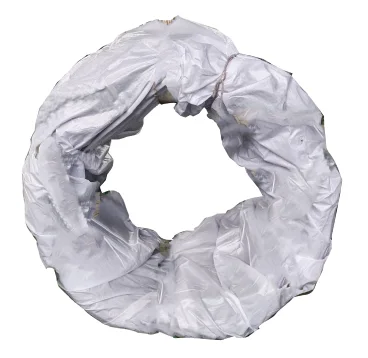

Outer coil wrapping
Blue outer wrapping and strapping of coils.

Neutral export packaging
An example of coils with green outer wrapping.

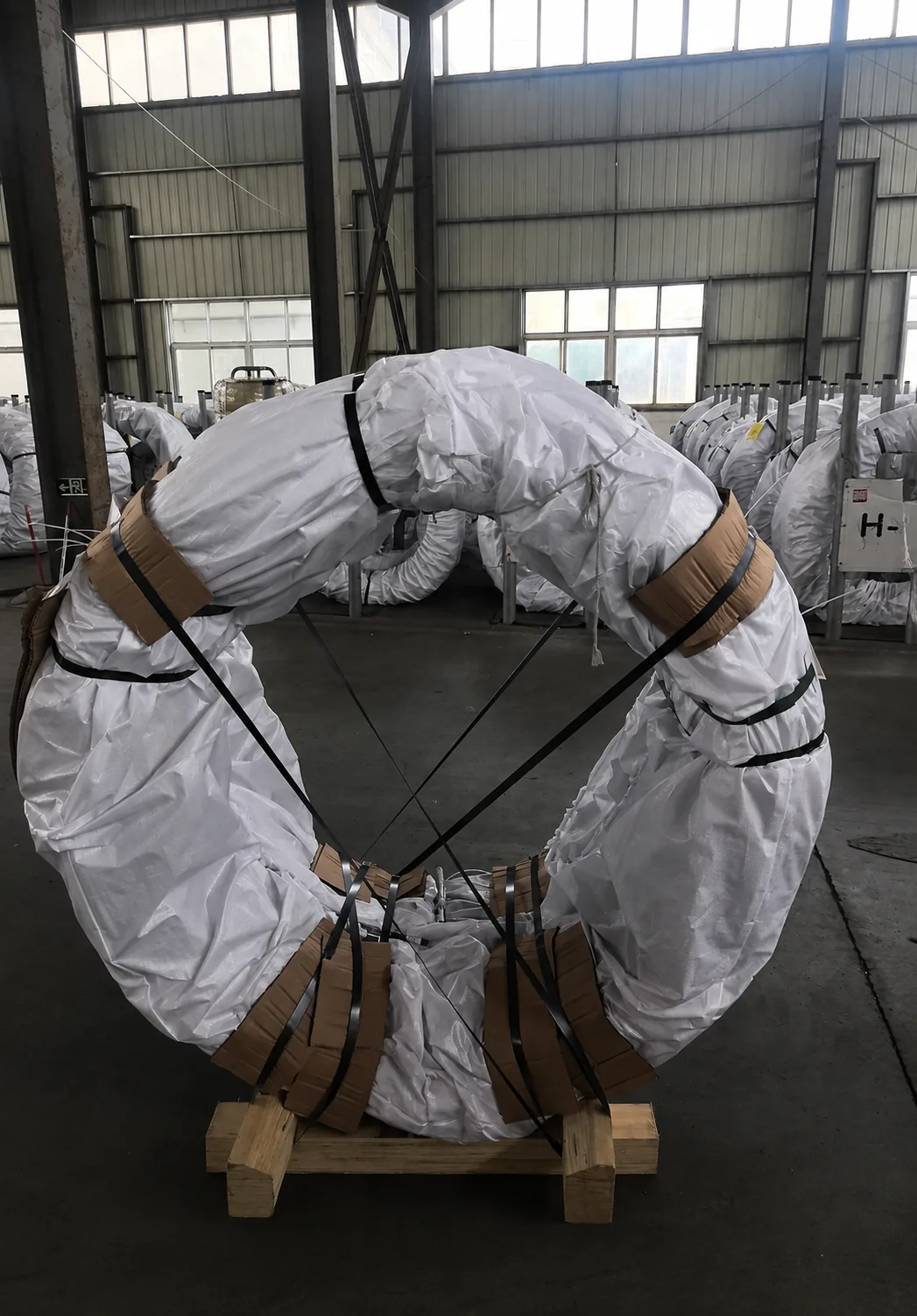

Wire-stand packaging
Wrapped coils with strapping and support.

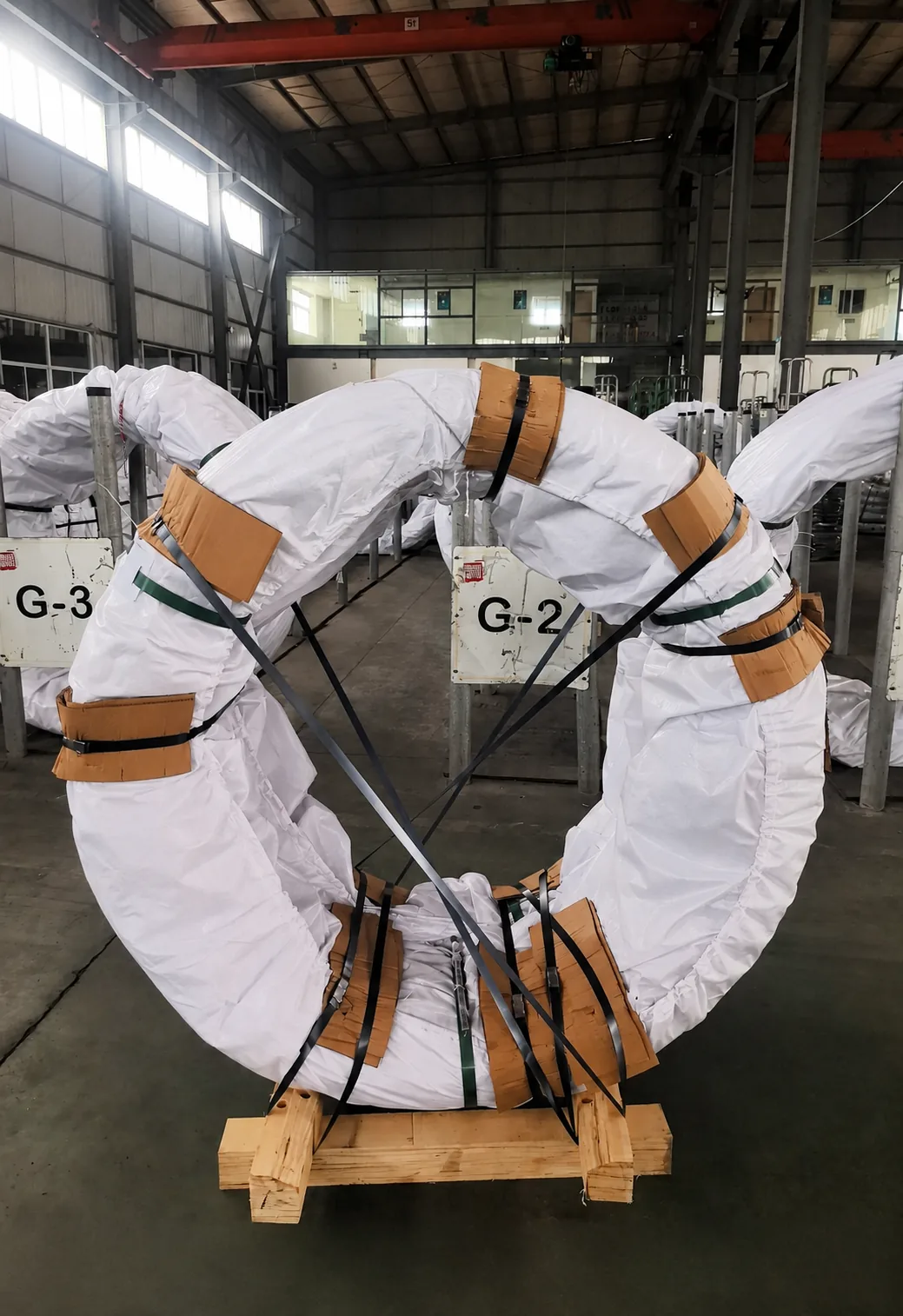

Large-coil packaging
Protective outer wrapping of larger coils.

Machine wrapping
Packaging equipment applying outer wrapping to a coil.

Finished-product outer packaging
Outer packaging of finished coils in the workshop.

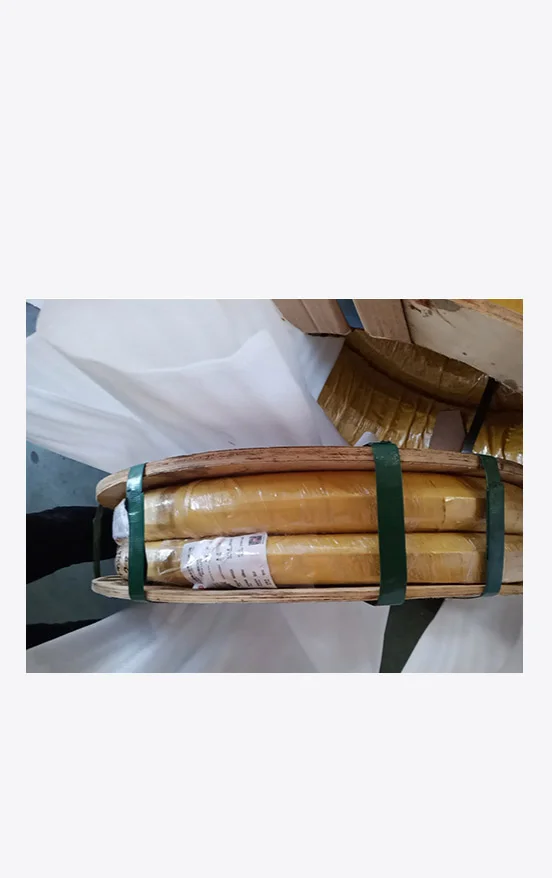

Stainless steel wire packaging
Protective outer packaging of small coils in different sizes.

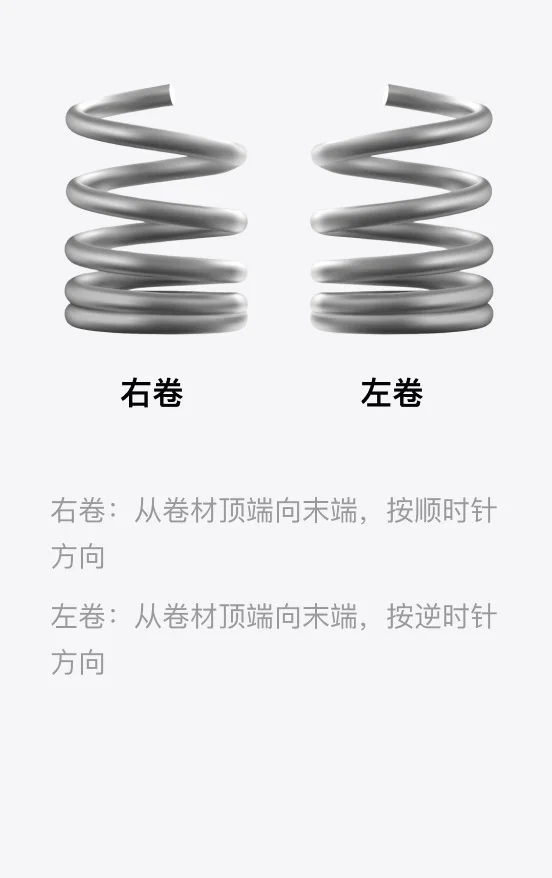

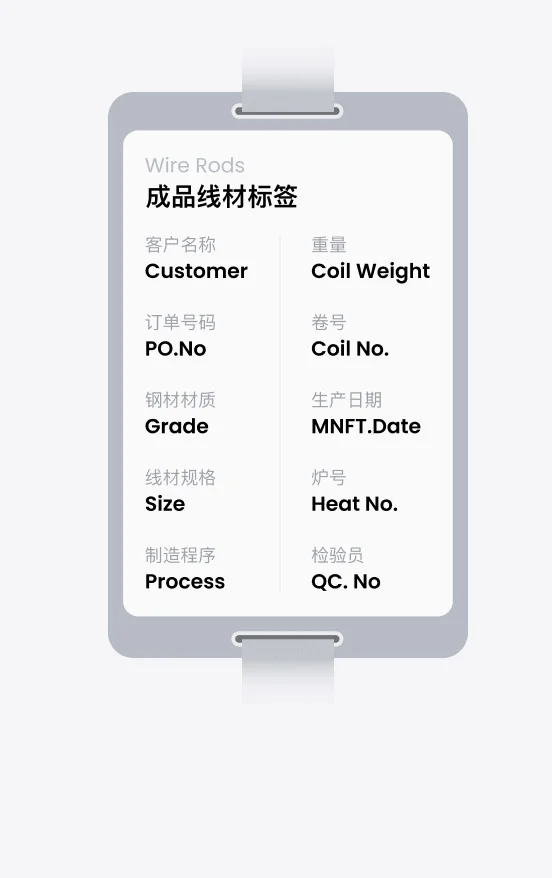

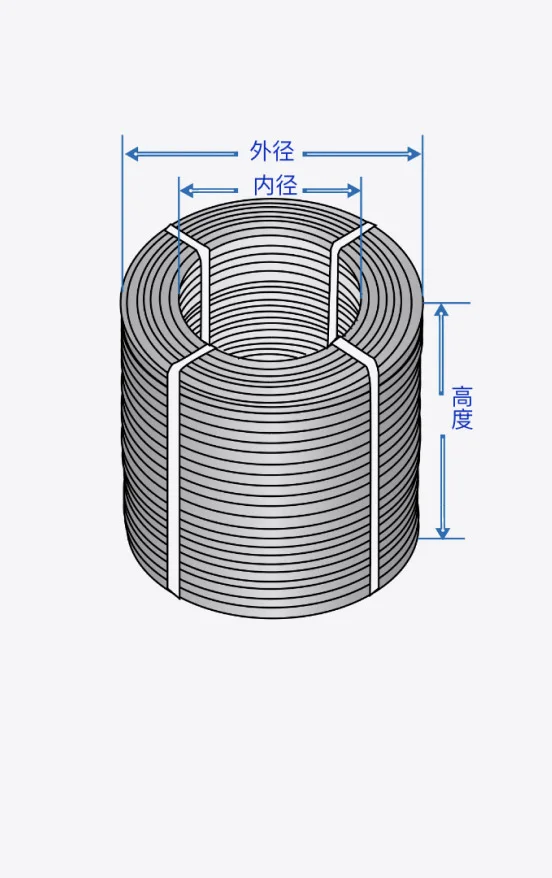

Labelling, winding and wooden-case reference diagrams

These existing diagrams illustrate labels, coil winding and packaging shapes. Actual dimensions, label content and packaging construction are confirmed for each order.
